DICS BRAKE

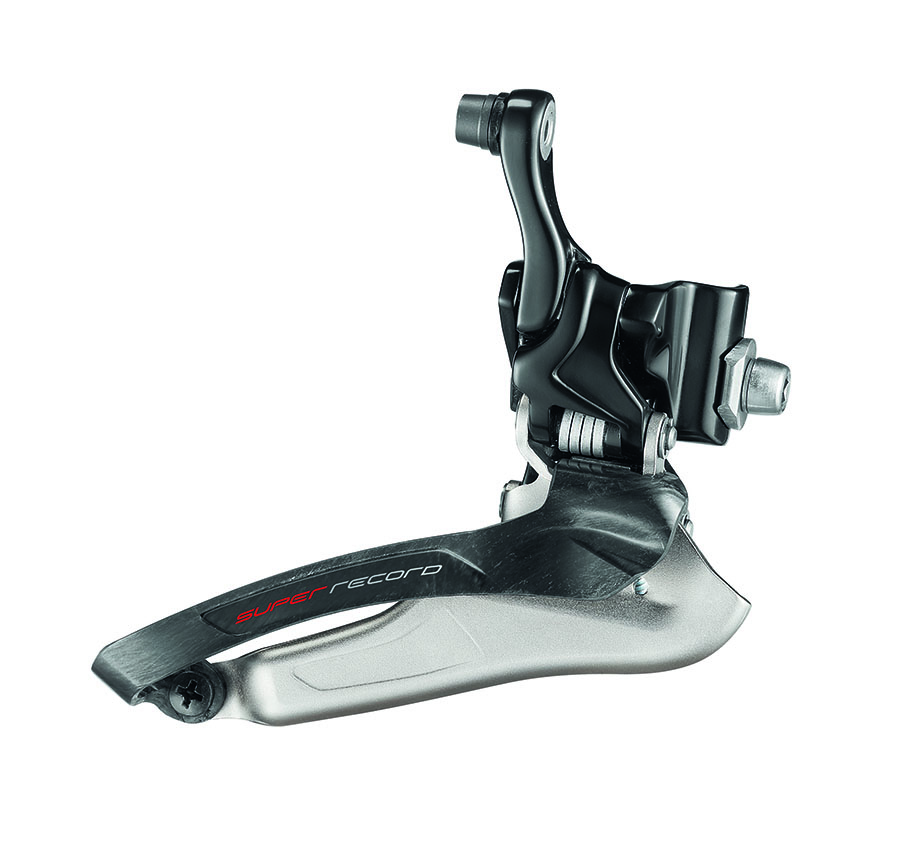

> SUPER RECORD™ FRONT DERAILLEUR

SPECIAL INNER CAGE DESIGN - OUTER SEMI-CAGE IN MONOCOQUE CARBON - CSD (CHAIN SECURITY DEVICE) - DERAILLEUR CLAMP - DUAL POSITION CABLE CLOSURE ALLOWS FOR VERSATILE CABLE POSITION AND BETTER TIRE CLEARANCE– SPLIT CONNECTING ROD FOR SMOOTH DERAILING

> SUPER RECORD™ CRANKSET

FULL COMPATIBILITY WITH DISC AND RIM BRAKE FRAMES - Q FACTOR MAINTAINED AT 145,5 mm - NEW CHAINRINGS - ULTRA-TORQUETM AXLE - TITANIUM AXLE AND REVERSE THREAD TITANIUM FIXING BOLT - OPTIMIZED UPSHIFTING PINS FOR EACH CHAINRING COMBINATION - HOLLOW CRANKS AND SPIDER ARMS WITH ULTRA-HOLLOWTM TECHNOLOGY - CULTTM TECHNOLOGY - 8 BOLT RETENTION DESIGN INCREASES EFFICIENCY - CAMPAGNOLO® ULTRA-TORQUETM BB CUPS REQUIRED - REINFORCEMENT BRACE FOR INCREASED STIFFNESS IN AREAS OF HIGHEST TORQUE APPLICATION

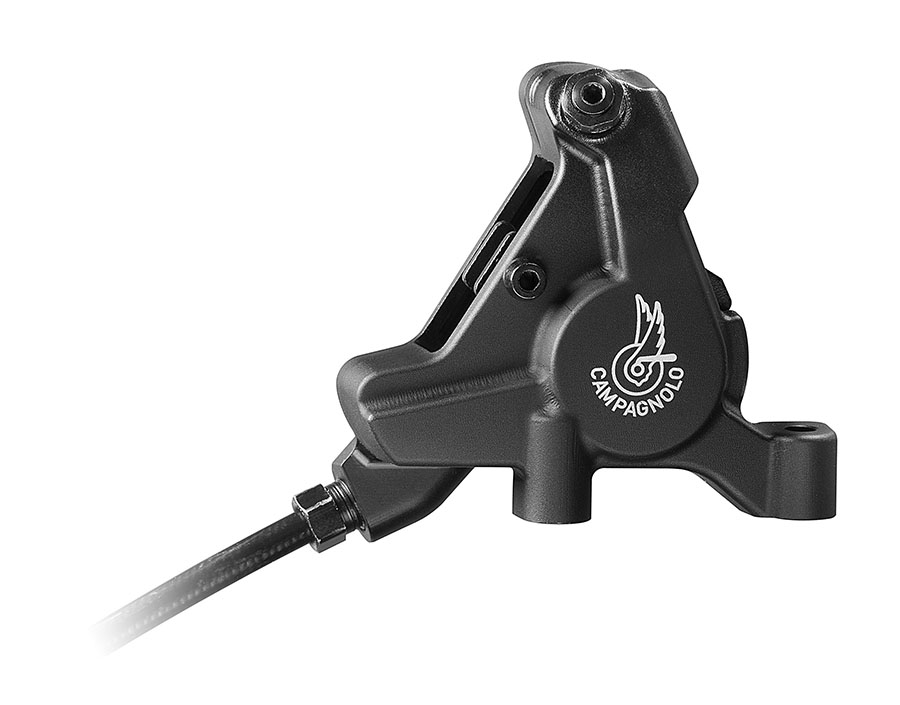

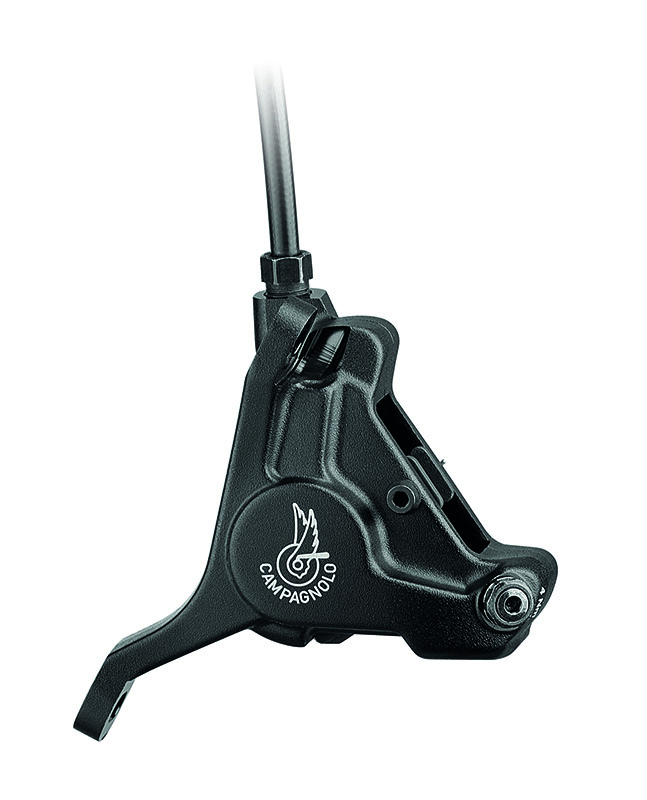

> CAMPAGNOLO® CALIPER

FLAT MOUNT STANDARD - AVAILABLE CALIPERS: 160 mm FRONT (123 g PADS INCLUDED), 140 mm AND 160 mm (115 g / 119 g PADS INCLUDED) - 22mm PISTON WIDTH IN EVERY CALIPER - INTEGRATED MAGNETIC SPRING ON PISTON - 0,4 – 0,6 mm ROLL-BACK (RETURN) - PADS WITH WEAR LIMIT INDICATOR - ROUNDED EDGES ON THE PAD - ANTI VIBRATION METAL SHEET - CLEANER BIKE DESIGN - FAST AND SAFE ASSEMBLY

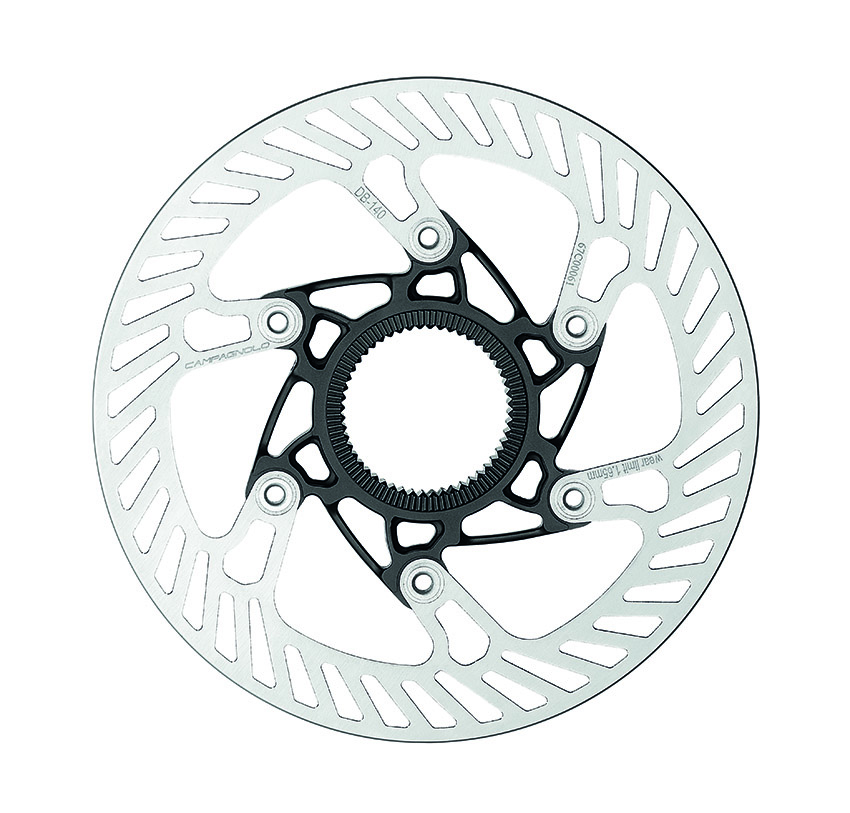

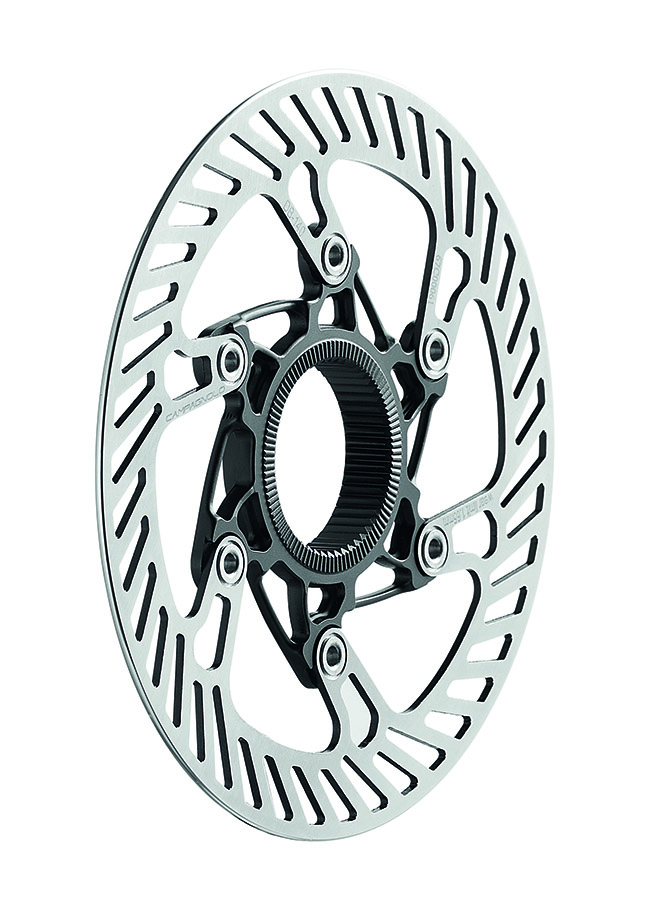

> CAMPAGNOLO® ROTOR 03

COMPATIBLE WITH CL / AFS HUBS - ROUNDED EXTERNAL EDGE - TWO DIMENSIONS AVAILABLE: 140 mm (99 g) AND 160 mm (120 g) - HIGH HEAT RESISTANCE - DIFFERENT QUANTITY OF SPOKES PER EACH DIMENSION - RIVET CONNECTION ENGINEERED TO ATTAIN SAFE DISTANCE BETWEEN ROTOR AND CALIPER, PROMOTING EFFICIENT COOLING UNDER STRESS

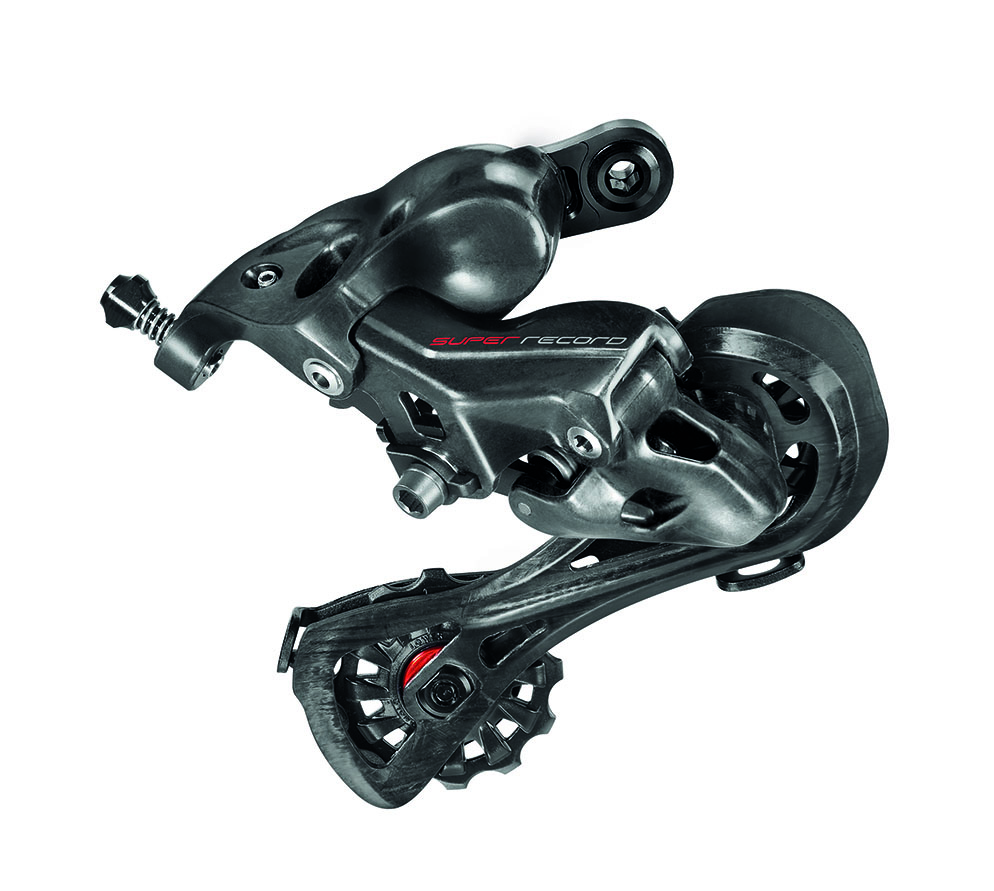

> SUPER RECORD™ REAR DERAILLEUR

UPPER PULLEY WHEELS WITH LONGER TEETH - LOWER PULLEY WHEELS WITH ROUNDED TEETH - 3D EMBRACE TECHNOLOGYTM - CARBON FIBER CAGE CONSTRUCTION - PARALLELOGRAM WITH TECHNOPOLYMER EXTERNAL CONNECTING ROD WITH UD FINISH (UNIDIRECTIONAL) - TITANIUM REAR DERAILLEUR FIXING SCREW - 12-TOOTH PULLEY WHEELS – JOINT FOR MOUNTING ON STANDARD OR DIRECT MOUNT DROP-OUTS

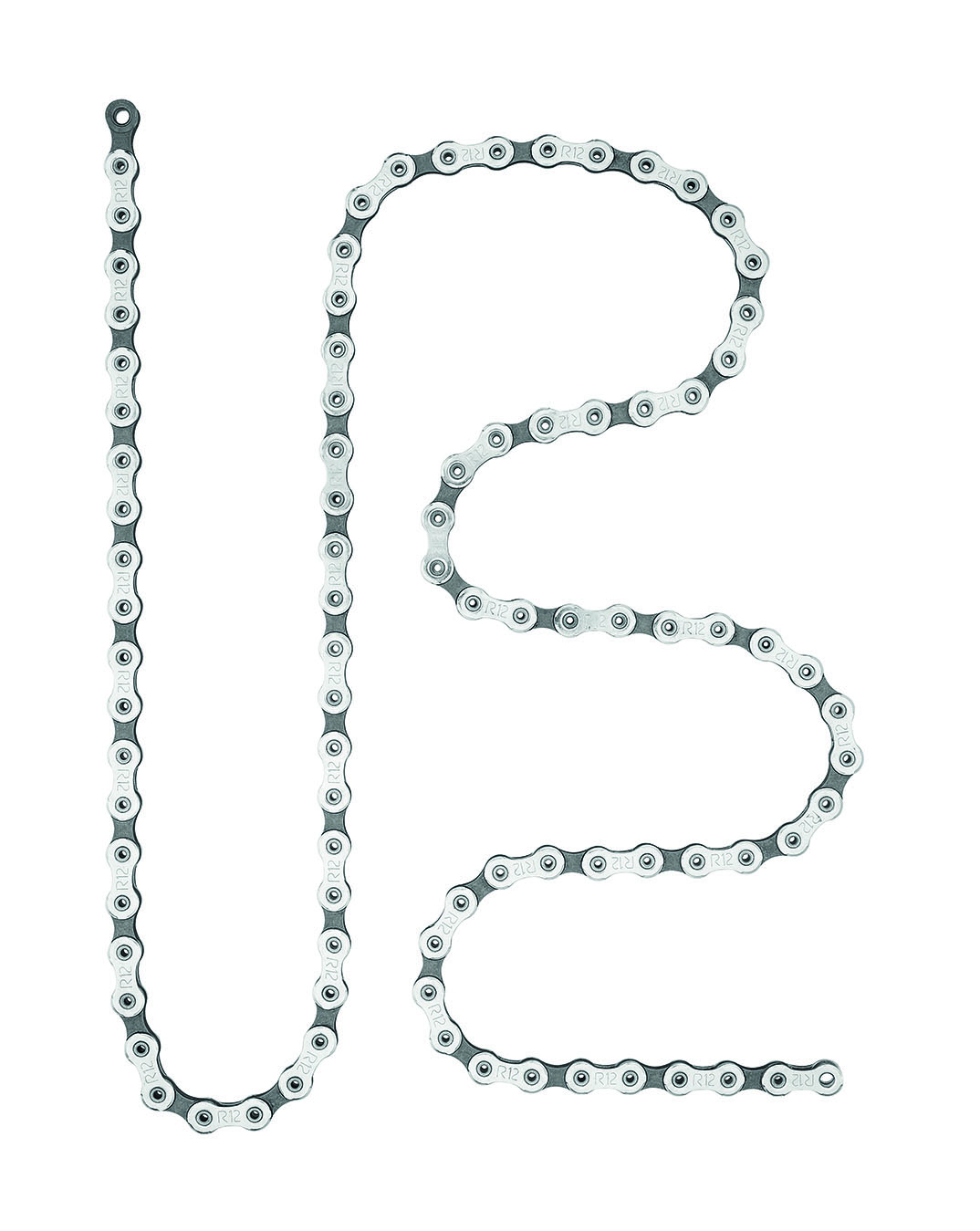

> SUPER RECORD™ CHAIN

ULTRA-LINKTM CHAIN LINK CONNECTING SYSTEM -
ULTRA-LINKTM CHAIN LINKS: designed to provide maximum performance to Campagnolo® transmissions: longer life for chainrings and sprockets, maximum efficiency in power transmission.

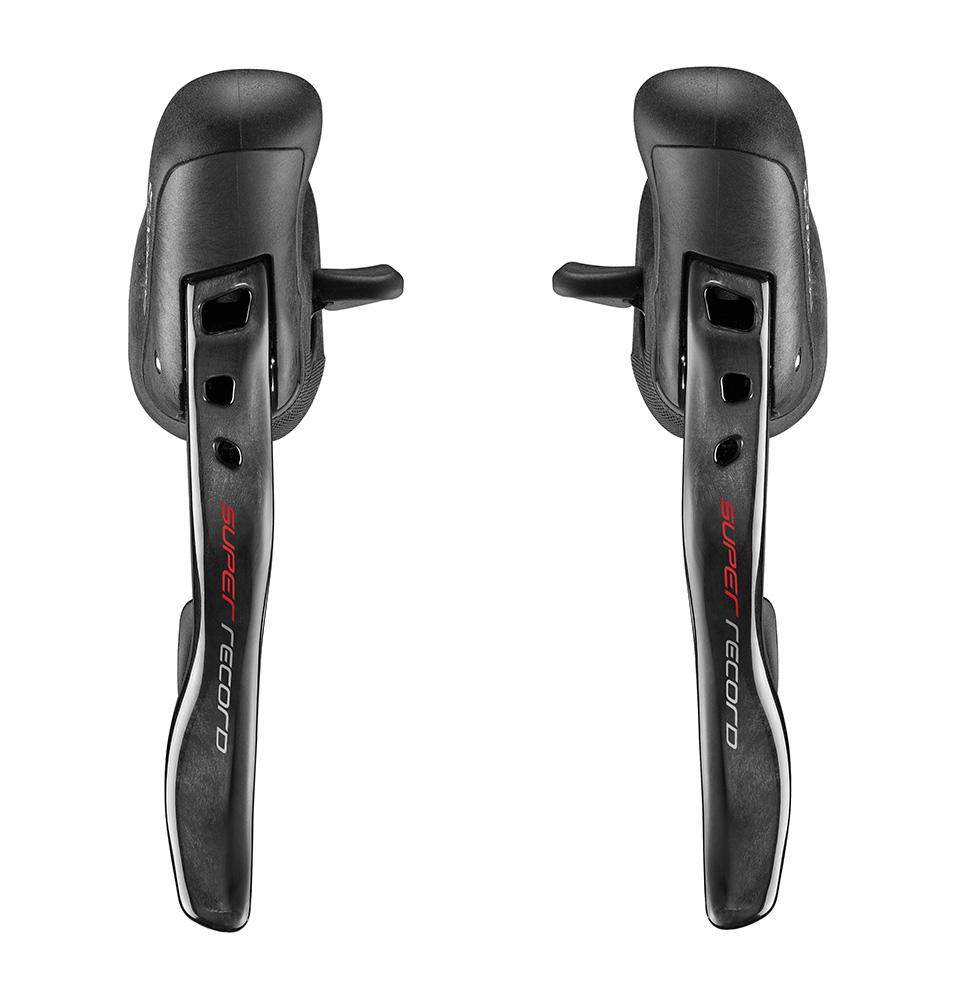

> SUPER RECORD™ DB ERGOPOWER™ CONTROLS

NEW ERGONOMICS OF THE ERGOPOWERTM BODY - NEW BRAKE
LEVER ERGONOMICS - BRAKE LEVER WITH DOUBLE CURVE - AMSTM ADJUSTMENT (ADJUSTABLE MODULATION SYSTEM) - REACH ADJUSTMENT - HYDRAULIC MASTER CYLINDER - BLEEDING PORT
ON THE TOP OF THE ERGOPOWERTM - ONE LEVER ONE ACTION - VARI-CUSHIONTM BRAKE LEVER HOODS WITH VARIABLE DENSITY AND SURFACE FINISHES - ULTRA-SHIFTTM FUNCTION ALLOWS FOR MULTIPLE SHIFTING AND GREATER CONTROL FOR RACING - DERAILLEUR CABLE ADJUSTING BARREL

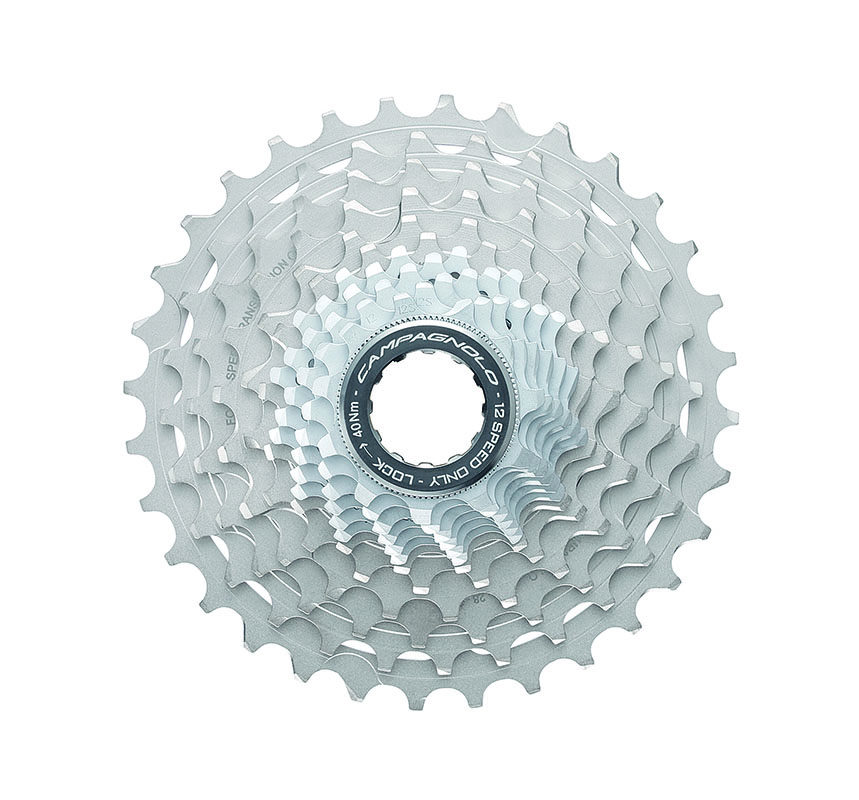

> SUPER RECORD™ SPROCKETS

ULTRA-SHIFTTM TEETH DESIGN -  ULTRA-SHIFTTM SYNCHRONIZATION - LAST TWO TRIPLETS MACHINED FROM MONOLITHIC STEEL FOR STIFFER STRUCTURE, LOWER WEIGHT AND PRECISE SHIFTING - CHAIN RETENTION TEETH ON 12TH SPROCKET
